Commercial HVAC Controls & Diagnostic Service Tools

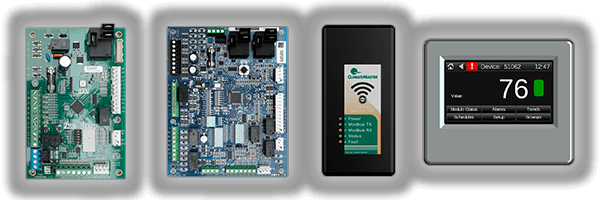

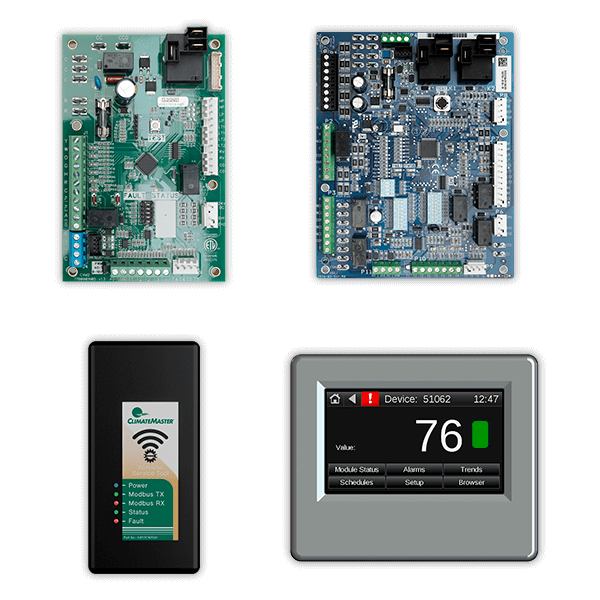

ClimateMaster offers a wide range of unit controllers that provide basic operation, advanced diagnostics/troubleshooting, and connection to building management systems. These are paired with exclusive service tools that provide technicians and users with a real-time interface to the water-source heat pump, either remotely or at the unit.
These products, combined, provide a wide range of application flexibility, integrated with ease-of-use technology that sets ClimateMaster systems and products apart from the competition.
CXM2
Features:
- Powerful entry-level control
- RS-485 port for communicating with communicating controls
- Single-stage compressor control
- Base control on all products except the Tranquility® (ST) Rooftop Series size 072 and smaller
Literature:
DXM2.6
Features:
- Controls Intelligent Constant Volume (CV) EC motors (required)
- RS-485 port for communicating with communicating controls
- Single- or two-stage compressor control
- Optional on all products except the Tranquility® (ST) Rooftop Series size 096 and larger
Literature:
Refrigerant Detection System (RDS)
Features:
- Responsible for monitoring sensors that detect R-454B refrigerant or enabling external ventilation
- Includes an output relay with normally open and closed contacts for various uses
- Uses non-volatile Flash memory for storing configuration and operational information
- If the RDS detects refrigerant concentration above the maximum threshold, the RDS enables the unit blower, disables the compressor(s), and enables the pilot relay on the RDS board
ClimaLink Edge
Features:
- Enables integration into DDC systems and management through the Wireless Service Tool
- Supports BACnet Ethernet/IP or
MS/TP communications - Supports Modbus RTU or TCP communications for integration into Modbus DDC networks
- Integrates with any ClimateMaster commercial WSHP
Literature:
MPC Multi-Protocol DDC
Features:
- Allows for integration into DDC systems
- Supports BACnet MS/TP, Johnson Controls N2 and Modbus communication
- Integrates with any ClimateMaster commercial WSHP
- Optional on all products
Literature:
Wireless Service Tool
(WST)
Features:
- Complete interface into the ClimateMaster water source heat pump system from the convenience of your personal Wi-Fi device
- View the refrigerant circuit with real-time temperature, pressure, and airflow readings included in the on-screen diagram
- Provides technicians the ability to field configure products, access performance data, and set up systems with ease
- Conveniently update tool software remotely when connected to the internet
Advanced Refrigerant Control
Features:
- Monitors refrigerant sensors and controls refrigerant valves
- Uses non-volatile flash memory for storing configuration and operational information
- Includes multiple refrigerant sensor inputs, two stepper outputs for modulating refrigerant valves, and an output relay with normally open and closed contacts
Literature:
Equipment Touch Service Tool (EQT)
Features:
- Large color touchscreen for ease of use
- Interface to the ClimateMaster MPC (BACnet) building management controller
- Provides access to most internal control/status points and alarms
- Used by technicians for start-up and troubleshooting for building management controller systems
Legacy Controls
DXM
DXM2.5
Features:
- Controls Intelligent Constant Volume (CV) EC motors (required)
- RS-485 port for communicating with communicating controls
- Single- or two-stage compressor control
- Optional on all products except the Tranquility® (ST) Rooftop Series size 096 and larger
