TRILOGY SERIES:

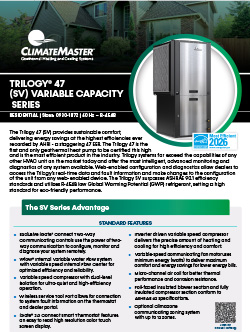

Trilogy® 47 (SV) Variable Capacity Series
The Trilogy® 47 (SV) Variable Capacity Series is the most efficient product ClimateMaster builds. AHRI has certified the Trilogy 47 to an EER of up to 47 under ground-loop part-load conditions. The SV achieves the highest EER certification in the market
The Trilogy® SV is a packaged water-to-air system. It is ENERGY STAR certified and carries the ENERGY STAR Most Efficient 2026 designation. It surpasses ASHRAE 90.1 efficiency standards. It uses R-454B refrigerant, which has a low global warming potential (GWP).
Three sizes cover 9,000 to 72,000 Btuh. Set the temperature you want, and the unit modulates across its whole operating range to hold it.
NOTE: Only dealers who have been trained on both of the following classes in the past two years can sell the Trilogy:
- CM202 Service Installation Class
- Trilogy Training Class
The Trilogy® SV is built on three variable-speed pillars: the compressor, the fan motor, and the water pump. They work together as one fully modulating system.
Three things set the SV apart from every other HVAC unit on the market:
- Fully variable performance. The SV reaches 47 EER on a ground loop at part load. That is the highest AHRI efficiency in the geothermal water source heat pump market.
- Advanced monitoring and diagnostics. EXM Advanced Variable Capacity Controls read smart sensors across the unit. The unit reports operating status, faults, and probable cause to the thermostat, the Wireless Service Tool, and the myUplink PRO web portal.
- Remote configuration. Dealers reach real-time operating data and fault history from any web-enabled device. They can also change unit configuration remotely.
FEATURES
Sizes and capacity
- Three sizes: 0930, 1248, and 1872
- SV0930 modulates between 9,000 and 30,000 Btuh
- SV1248 modulates between 12,000 and 48,000 Btuh
SV1872 modulates between 18,000 and 72,000 Btuh
Efficiency and refrigerant
- Exceeds ASHRAE 90.1 efficiency standards
- ENERGY STAR certified; ENERGY STAR Most Efficient 2026
- R-454B low-GWP refrigerant
- Refrigerant Detection System (RDS), optional on all three sizes
ACCESSORIES
- iGate® 2 Communicating (AWC) Thermostat with color touchscreen. Field installed. Four-wire connection. Integrated humidity control. Utility demand reduction. Displays faults with probable cause and troubleshooting guidance.
- iGate® 2 ClimaZone communicating zoning system. Up to 12 zones with two ClimaZone panels. Up to three dampers per zone. One AWC thermostat per zone. Configured through the Wireless Service Tool.
- Auxiliary electric heaters. Field installed. Supplemental and emergency heat.
