AHRI certified · ISO 13256-1
No unit has ever been certified higher.
The Trilogy® 47 (SV) Variable Capacity Series holds the highest efficiency AHRI has ever recorded for a geothermal heat pump. It is the first and only unit certified this high, and it is the most efficient product in the industry.
- R-454B low GWP
- ENERGY STAR Most Efficient 2026
- 10-year parts · 5-year labor
Trilogy 47 (SV) · SV0930
- Part load EER
- 47.0
- Loop type
- Ground loop
- Part load COP
- 4.7
- Refrigerant
- R-454B
- Capacity range
- 9,000–30,000 Btuh
Tested to AHRI/ASHRAE/ISO 13256-1. Ground loop ratings assume a 15% methanol solution, 68°F part load cooling. Ratings vary by model and loop type.

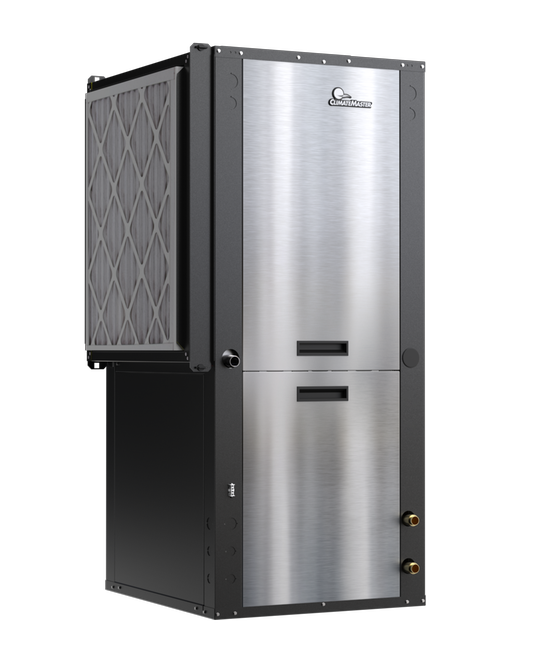

Trilogy® 47 (SV) Variable Capacity Series
The Trilogy 47 (SV) is the most efficient product ClimateMaster builds. AHRI has
certified it at 47 EER. No other geothermal heat pump has been certified this
high.
The Trilogy SV is a packaged water-to-air system. It is ENERGY STAR certified and
carries the ENERGY STAR Most Efficient 2026 designation. It surpasses ASHRAE 90.1
efficiency standards. It uses R-454B refrigerant, which has a low global warming
potential (GWP).
Three sizes cover 9,000 to 72,000 Btuh. Set the temperature you want. The unit
modulates across its whole operating range to hold it.
NOTE: Only dealers who have been trained on both of the following classes in the past two years can sell the Trilogy:
- CM202 Service Installation Class
- Trilogy Training Class
