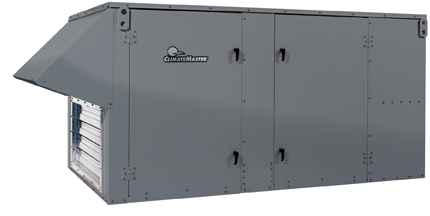

 Tranquility® Rooftop (TRE) Series
The Rooftop (TRE) Series provides an economical solution for today's HVAC challenges. The TRE product line offers the option of introducing a fixed amount of outside air year-round or a modulating Economizer to provide free cooling when outdoor conditions are favorable. TRE units are designed for an extended range of source water temperatures, making it suitable for closed-loop, or ground source closed-loop systems. With high efficiency scroll compressors and belt drive motors, the TRE product line offers 13+ EER and 4+ COP.
- Sizes 036 (3 tons, 10.6 kW) through 240 (20 tons, 70.4 kW)
- EarthPure® (HFC-410A) zero ozone depletion refrigerant
- Exceeds ASHRAE 90.1 efficiencies (40% better than standard rooftop units!)
- Galvanized steel construction and powder coat paint on all units
- Copeland Scroll compressors (dual circuited on sizes 096 and larger)
- Microprocessor controls standard (optional DXM and/or DDC controls)
- Bi-directional, balanced port expansion valve refrigerant metering device standard
- Extended range operation package standard
- Double wall construction for access doors and stainless steel hardware
- Belt-drive blowers with various configurations for RPM/ESP settings
- High/low pressure switches and electronic condensate overflow sensor standard
- Eight safeties standard
- Rx ERV option handles up to 100% outside air
|
|
|
|
|
|
|
|
|
