TL Series
|
|
|
 |
 |
| |

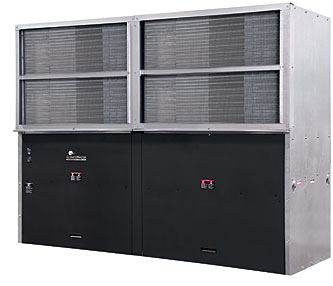

 Tranquility® Large (TL) Series
The award-winning Tranquility Large (TL) Series raises the bar for water-source heat pump efficiencies, features and application flexibility. Not only does the Tranquility Large Series exceed ASHRAE 90.1 efficiencies, but it also uses EarthPure® (HFC-410A) zero ozone depletion refrigerant, making it an extremely environmentally-friendly option. Tranquility Large Series is eligible for additional LEED® (Leadership in Energy and Environmental Design) points because of the “green” technology design.
- Vertical sizes 084 (7 tons, 24.6 kW) through 300 (25 tons, 87.9 kW)
- Unit configuration can be ordered with, or converted to front or back return and top, front, or back discharge. Field conversion uses all existing parts including panels and belts
- Electrical box can be field converted to be on front or back of unit
- Electric power can enter from any side of unit
- Water and drain can be connected to either side
- Dual refrigeration circuits (TL168, 192, 240, 300)
- Exceeds ASHRAE 90.1 efficiencies
- TXV metering device
- Extended range (20 to 120°F, -6.7 to 48.9°C operation)
- Microprocessor controls standard (optional DXM and/or DDC controls)
- LonWorks, BACnet, Modbus and Johnson N2 compatibility options for DDC controls
- Unit Performance Sentinel performance monitoring system
|
|
|
|
|
|
|
|
|
